Overview

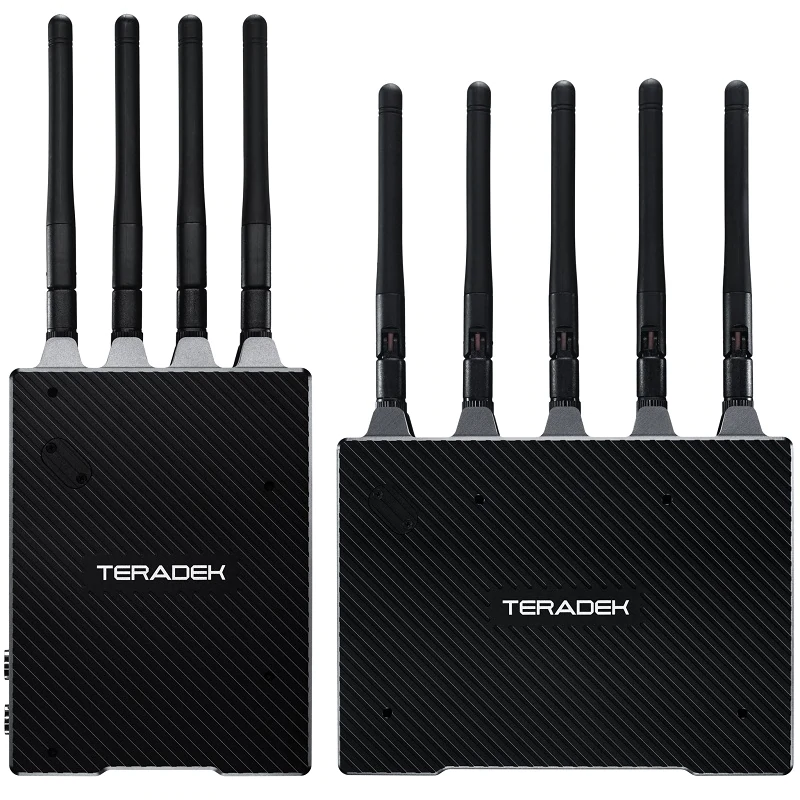

Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.

Real-Time 4K Wireless Video

Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 ft. of range.

True HDR Color

Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

Rock-Solid Reliability

Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

Universal Compatibility

Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

Inputs/Outputs

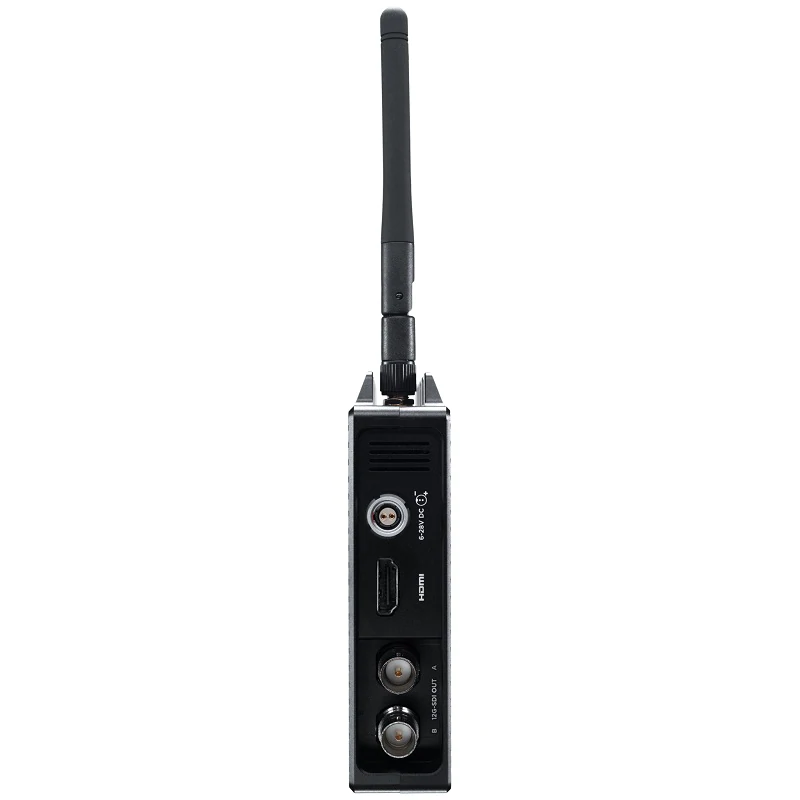

Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0

Battery Plates

Optional Gold or V-mount battery plate with pass-through power available on both TX & RX.

Camera Metadata

Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.

Bolt App for iOS and Android

Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand.

What’s In The Box?

• 1 x Bolt 750 12G-SDI/HDMI Wireless TX V Mount
• 1 x Bolt 750 12G-SDI/HDMI Wireless RX V Mount
• 4 x Bolt 4K Wire Cover Plate (Machined Anodized)
• 1 x Bolt 4K TX Mounting Bracket
• 1 x Lightstand Adapter 3/8in
• 1 x Hot Shoe Adaptor
• 4 x Screw FlatHead Phillips Black Oxide 18-8 S S 0-80 x 1/8in
• 2 x Screw Socket Cap A S, M3 x 16mm
• 1 x Hex L key 2.5mm size 3-5/8″ length
• 2 x (Bit 118) 2pin Conn. to PowerTap – 18in Cable
• 1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in Cable
• 1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable
• 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in Cable
• 2 x SDI 12G BNC to BNC Cable Length: 18in / 46cm
• 1 x Teradek Case XL – Bolt 4K TX/4RX and Antenna Array
• 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
• 9 x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
• 1 x Teradek Standard Terms and Conditions
• 1 x Insert – Product Register
• 1 x Quickstart Guide – Bolt 4K 750/1500
• 1 x Insert – Bolt 4K A/C Adapter Requirements
• 1 x Wooden Camera – Ultra Arm Monitor Mount (1/4-20 to 3/8-16, 5in)
