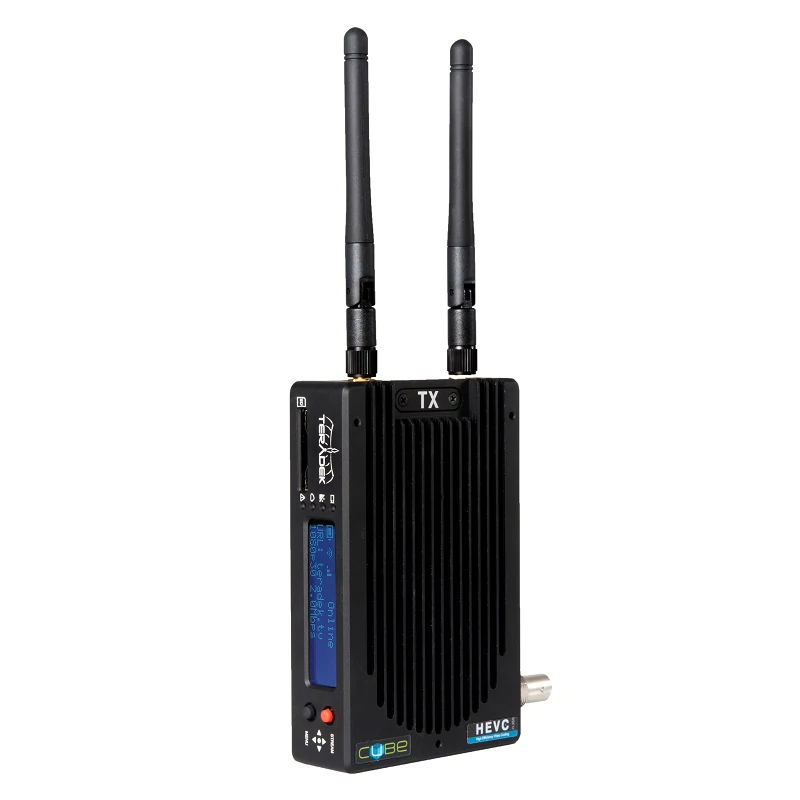

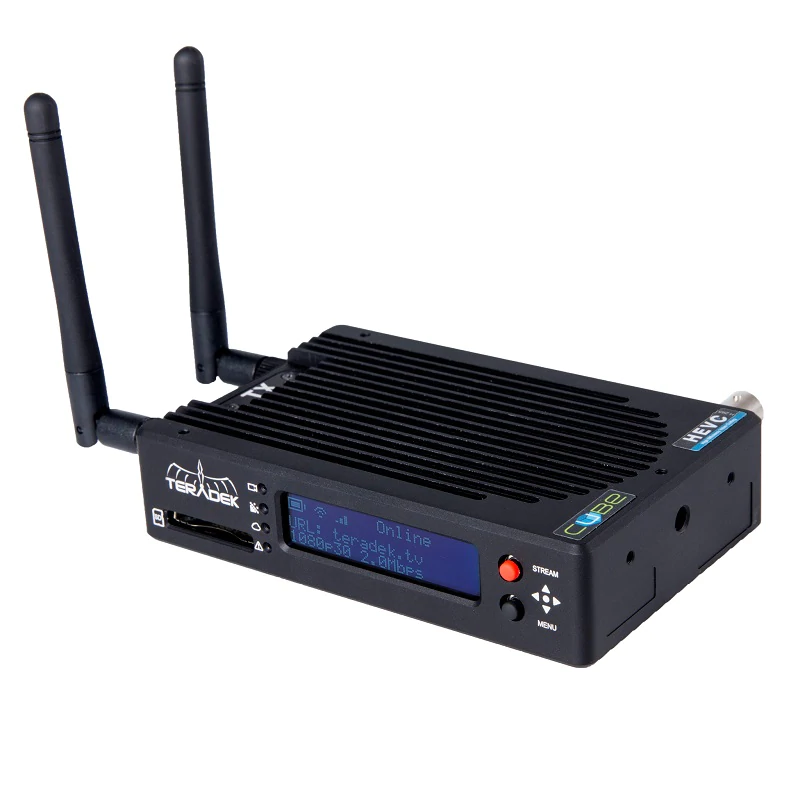

Teradek Cube 755 – H.265 (Hevc) & H.264(avc) Encoder

Video Inputs

• 1 x SD/HD-SDI (75 Ohm BNC)
• 1 x HDMI Type-A receptacle

Video Outputs

• None

Bonding

• TeraLink

Supported Resolutions

• 1080p 23.98/24/25/29.97/30/50/59.94/60*
• 1080i 50/59.94/60
• 1080PsF 23/24/25/29/30
• 720p 50/59.94/60
• 576i
• 480i
• 480p (for HDMI input only)
• 576p (for HDMI input only)
• *Ingests 1080p50/59/60

Video Compression

• H.265, Baseline, Main and High Profile
• H.264, Baseline, Main and High Profile

Supported Video Bitrate

• 250 Kbps to 30 Mbps

Test Pattern Generator Support

• Supports Custom Test Pattern

Video Format Conversion Support

• Built in Video Scaler and Deinterlacer

Color Correction

• CDL/1024 1D LUT (supports 10-bit color)
• 33x33x33 3D LUT (supports 10-bit color)

Network Protocols

• TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Supported Video Transport Protocols

• RTMP
• RTP, RTSP, RTSP over HTTP
• MPEG-TS (MPEG-TS is an optional paid license)

Remote Control

• Teradek Core

Software Or Platform Integration

• Ustream, YouTube Live, Facebook & new Livestream

Audio Compression

• AAC-LC, MPEG Layer 2

Audio Input

• Embedded Audio Input
• Analog Line or Mic in, adjustable gain

Audio Output

• Headphone output

Dimensions

• 4.75″W x 3″D x 1.1″H [120.7 x 76.2 x 27.9mm]

Weight

• 11.6oz [328.9g]

Construction

• Milled Aluminum

Mountability

• Can be mounted horizontally or vertically with
• 1/4″ 20 mounting holes

Http

• WebUI for Configuration and Control

Configuration Interfaces

• OLED Display with joystick Navigation buttons
• Feature-rich WebUI for configuration and control

Switches

• On/Off and Reset Switch

Recording Storage

• SD Card: Full Size

Mobile App

• Vuer, Live:Air

Usb Interface Functionality

• 1x Powered USB 2.0 host port

Ethernet

• 10/100/1000 BASE-T Gigabit

Wireless

• WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo

Usb

• USB 3G/4G Modem support**
• ** refer to this article on which modems are known to be supported: https://support.teradek.com/hc/en-us/articles/217447037-What-3G-4G-USB-Modems-are-supported-

Rf Channel Selection

• Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
• Configurable to specific channels

Encryption

• 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES

Power Input

• 2 Pin Connector Power input

Battery

• No Battery Included

Nominal Power Consumption

• 8W, 7W (no WiFi)

Auxilary Power Input

• 6-28V DC
