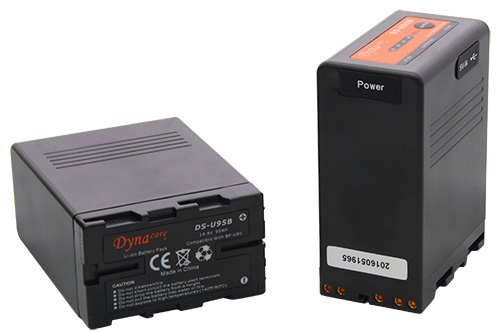

Dynacore DS-U95B Li-Ion Battery

DS-U95B  Li-ion Battery (SONY BP-U Series)

Dynacore DS-U95B is a 14.8V, 95Wh Li-ion DV battery that completely compatible with SONY PMW-Z190/Z280,EX1/3/F3/100/200,FS5/FS7.

The battery offers a D-tap DC socket for extension power output, and a 5V/1A USB socket for mobile devices (cell phone etc) charging.

The 4-level LED indicator can give you a quick view of remaining power before using, and the strong housing, intelligent circuit will protect the battery from shocking, abnormal current, voltage and temperature.

1. High-power Li-ion battery with the capacity up to 95Wh.
2. Intelligent Li-ion battery applies to SONY HDV camera, such as PMW-EX1R/EX3/F3/100/200.
3. Built-in 4-level LED power indicator shows accurately the remaining battery capacity.
4. Built-in D-Tap connector for camera light.
5. USB 2.0 5V/1A output.
6. Built-in multiple protective circuit design to prevent over charge, over discharge, over current, short circuit, etc.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the side of DS-U95B battery, for DC14.8V (Nominate) connection.

You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket, and get power simultaneously with camera.

The Max power from D-tap is 50W, 3.5A.

Build-in 5V/1A USB Socket

Use DS-U95B as Power Station to your cell phone! It’s rather a fantastic function

to have a USB socket on the DV battery!

Connect your smart phone or pad to the USB socket, press the “Check” button, and then the DS-U95B starts to output 5V/1A power to charge your devices!

Operation Instruction

1. Put the battery into camera slot along the arrow direction as indication in Fig.4 and lock it.
   2. Remove the serum cap for D-TAP output and insert the plug for flashlight.
   3. Press the power button for 3 seconds and USB output (Fig.1) is activated for charging portable equipment, such as mobile phone and Pad.
   Note: USB output will not be deactivated even when the power button is pressed during the charging process.
   USB output will be automatically deactivated under the following circumstances:
   ①. Equipment is fully charged;
   ②. Equipment is removed during the charging process;
   4. Cover the serum cap after use for dust prevention.
