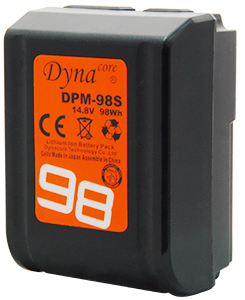

This pocket fit size battery is designed for the applications which requires compact
size power, like handheld stabilizers, focus puller monitor, portable LED panel, and
small cameras.
With high capacity cells adopt, though with super MINI dimension, it can still reach
capacity as high as 98Wh, and D-Tap&USB output are also avaiable.
Specifications
|
Model |
DPM-98S |
|
|
Battery Type |
V-Mount |
|
|
Voltage |
14.8V |
|
|
Capacity |
98Wh/6.7Ah |
|
|
Max Output |
Total |
120W,10A |
|
Pins |
120W,10A |
|
|
D-Tap |
100W,8A |
|
|
USB |
10W,2A |
|
|
Dimension |
102 x 75 x 50(mm) |
|
|
Weight |
0.50Kg |
|
|
Operating temperature |
-30°C ～ +50°C |
|
