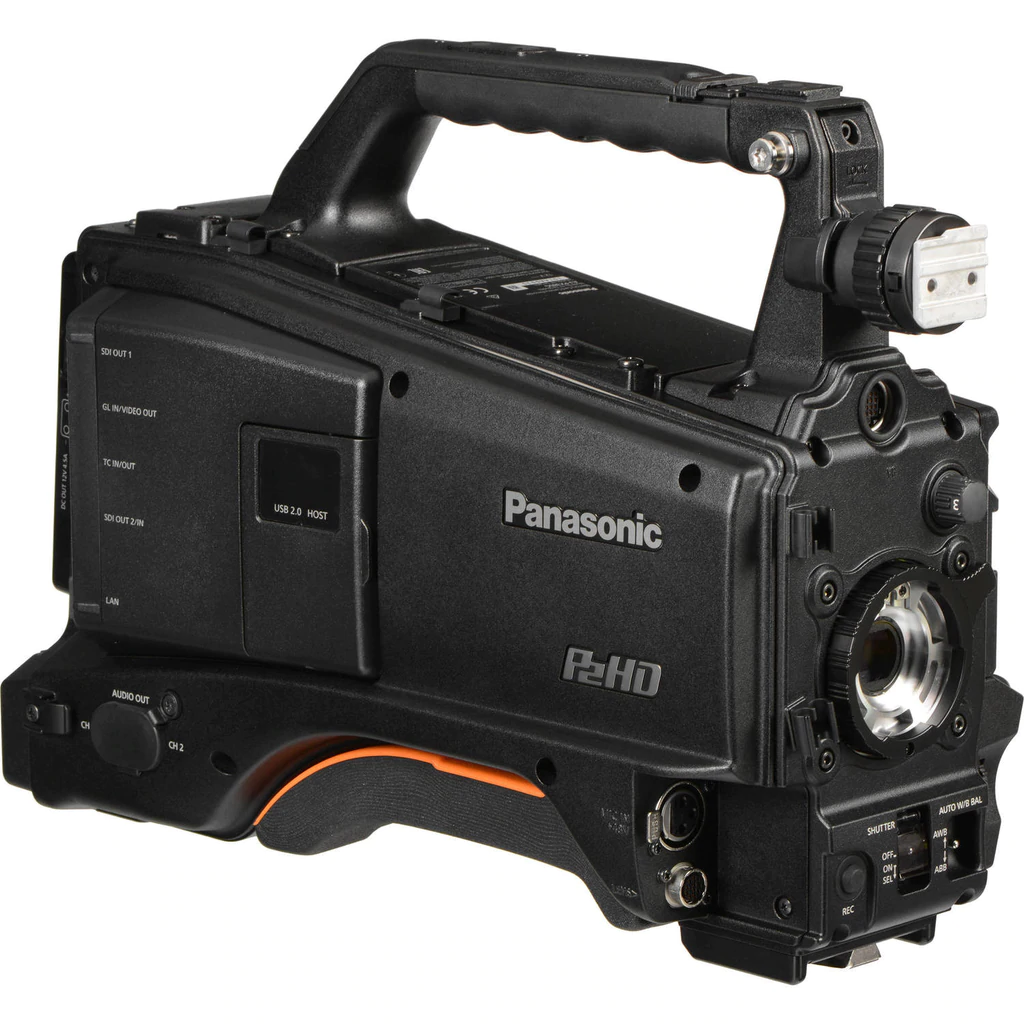

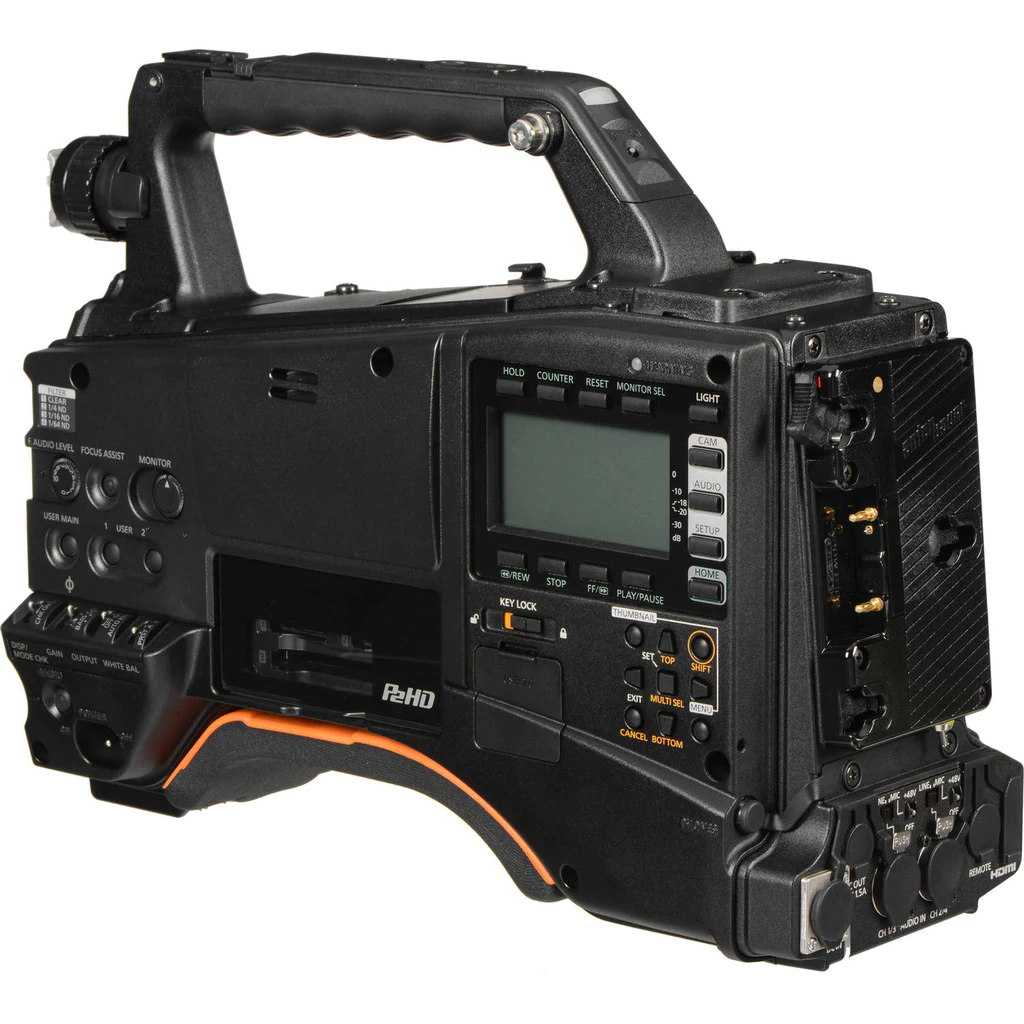

Panasonic AJ-PX380 GF 1/3" MOS Broadcast Camera ( Body Only )

0
0 Reviews 0 Orders 0 Wish
K248,398.20
TAX :
Quantity:
Total Price:

With advanced wireless and network functionality, the Panasonic AJ-PX380 P2 HD AVC-ULTRA Camcorder  is a 1/3″ ENG-style video camera with an interchangeable lens system. Please note that this item only includes the camera body and does not include the lens or viewfinder. Suitable for newsgathering, the camera captures Full HD at up to 59.94p, recording to optional micro P2 cards and supporting a P2 card slot. Using codecs in the AVC-ULTRA family allows you a choice of compression and data rate to suit your needs, and you can record proxy files on optional SD cards using the built-in SD media card slot.

It features a 3G-SDI, HD-SDI, and an HDMI output as well as a monitor output switchable between SD/HD and Composite. With both Genlock In and Timecode In/Out, the camera is suitable for multi-camera and single-camera news coverage. The camera comes ready to interface with your network via the built-in Ethernet connector. You can attach an optional USB dongle to the camera for wireless connectivity using WiFi, 4G, or LTE. The camera features a variety of in camera image settings, including Flash Band compensation, which minimizes the effects of still photo camera flashes captured on video. The built-in Uni Slot accepts optional wireless audio recording.

1/3″ Type Interchangeable Lenses

Compatible with 1/3″-type mount interchangeable lenses allows you to choose from a variety of 1/3″-type zoom lenses for broadcasting and other professional uses from third-party manufacturers.

Included Zoom Lens and Color EVF

This version of the camera includes a Fujinon 17x zoom lens, and the Panasonic AG-CVF15G HD Color Viewfinder, which features a 3.45″ LCD display with an eyepiece. The eyepiece can be flipped up and out of the way, allowing the LCD be viewed as a direct monitor. The display can also rotate on two axis, allowing users to reposition the monitor for optimal viewing angles. The hub features a series of control knobs for adjusting peaking, chroma, contrast, and brightness. There are also selector switches for backlight brightness, zebra, and tally.

Sensor

Featuring a 2.2-megapixel 1/3-type 3MOS image sensor, this advanced camera recorder achieves high F11 (59.94 Hz)/F12 (50 Hz) sensitivity and excellent picture quality.

NTSC & PAL Support

The camera is switchable between NTSC and PAL compatible recording.

HD/SD Multi Format/Multi Codec

The camera supports 59.94 Hz/50 Hz switching for convenient use in productions headed for global use, and records 1080/60i,* 50i, 24p,* 25p, 30p* and 720p HD/SD multiple format. DVCPRO HD/DVCPRO50/DVCPRO/DV recording is also supported.



Note: 60i, 60p, 24p, and 30p are actually 59.94i, 59.94p, 23.98p, and 29.97p

AVC-ULTRA Codec Family

AVC-Intra: An intra-frame compression method that is highly suited to image production, AVC-Intra100/50.

AVC-LongG: An intra-frame compression method that is ideal for providing on-air content direct from the shooting location and for workflows that use content transferred over the internet. Three bit rates are available: AVC-LongG50/25/12 Mbps. AVC-LongG25 provide 10 bit/4:2:2 quality at a bit rate of approximately 25 Mbps

AVC-Proxy: Low-bit-rate, high-resolution, high-sound quality proxy video (Quick Time/H.264) includes metadata for efficient offline editing that can later be used to conform that original master files.

Dual MicroP2 Card Slots

Simul Rec: Records simultaneously onto two microP2 cards.

Dual-codec recording: Records a low-rate AVC-Proxy file while recording main data in AVC-Intra/AVC-LongG.

Hot-Swap Rec: You can hot-swap microP2 cards for continuous non-stop rec, replacing one card as it fills up.

P2 Card Slot

A single P2 card slot allows you to use P2 card, however, the P2 slot does not support using a P2 to microP2 card adapter.

24-Bit Four Channel Audio Recording

AVC-Intra and AVC-LongG modes support 24bit/48 kHz/4CH digital audio recording. Audio source for each channel can be selected for each channel, choosing from mic-in, line-in and wireless receiver.



Note: AVC-LongG12 mode does not support 24 bit digital audio recording. Audio can be played back by using 24-bit digital audio equipment.

Wired/Wireless LAN Network Functions

  • Wired LAN, wireless LAN, and 4G/LTE connectivity. FTP server uploading and Streaming are supported.
  • Rec during Uploading, automatically uploads recorded clips to an FTP server or cloud server. Uploading is done in the background, and recording/playback continues during the transfer.
  • On-Air Streaming can also be conducted while recording. In addition to selecting from 800 kbps to 6 Mbps (Full-HD), a QoS (Quality of Service) mode is available for streaming. It automatically controls the bit rate and frame rate to match the network conditions, for stable streaming performance.
  • When connected by wireless LAN, recorded clips can be previewed and metadata can be checked and edited with a PC/Mac, smartphone or tablet device.
  • Downlable P2ROP App for iPad, enables an advanced wireless camera remote function.

USB Dongle Slot

Accepts optional 4G/LTE/WiFi dongles providing wireless connectivity including file transfer and proxy streaming.
