The Smallest, Lightest*1 4K 60p Camcorder
Professional camcorders combine power with mobility. These compact units enable high-quality 4K 60p recording with the excellent portability required for professional use. They deliver a high-spec optical performance with a wide-angle 25mm*2 lens and optical 24x zoom featuring Face Detection AF/AE. Professional functions include Two Manual Rings, an ND Filter, a Built-in LED Video Light and 24-bit High-Resolution PCM Audio Recording.
Video acquisition utilizes 4:2:2 10-bit internal recording*3 and the new HEVC (High-Efficiency Video Coding) codec for video compression. HD live streaming is possible with the camcorder body alone due to built-in Wi-Fi. Also, in addition to serving as a highly mobile and responsive director’s camera for strong support when shooting on-location and news gathering, the design also meets the needs of advanced amateurs for uncompromising 4K imaging.
The AG-CX10 includes advanced IP networking features, such as built-in Wi-Fi support for HD live streaming to YouTube, Facebook, and other social sites via RTMP/RTMPS/RTSP protocols. In addition, the AG-CX10 includes an Ethernet connection for streaming and an NDI|HX connectivity for use in live production, as well as ROP tablet-based control.
The camera supports a variety of high-quality recording options using the Venus engine, including 4:2:2 10-bit internal recording with a maximum 29.97p in UHD, and a maximum 59.94p in FHD. When recording in 10-bit, the camcorder delivers 4K 60p 4:2:2 10-bit HDMI output. It also supports HEVC recording (LongGOP/10-bit 4:2:0/MOV) at 59.94p with a bit rate of 200 Mb/s. In addition to MOV, MP4, and AVCHD, the AG-CX10 also supports P2 MXF for broadcast stations, with AVC-LongG support, plus AVC-Intra100/50 support planned via a future firmware update. Dual SD card slots support relay recording for virtually limitless record times.
Please note that P2 recording requires microP2 cards.
The wide-angle 24x optical lens offers a zoom range of 25 to 600mm (35mm-equivalent), and it features 32x iZoom in 4K and 48x iZoom in HD. Panasonic’s exclusive high-precision AF also provides high-speed, accurate focusing for both 4K and Full HD shooting.

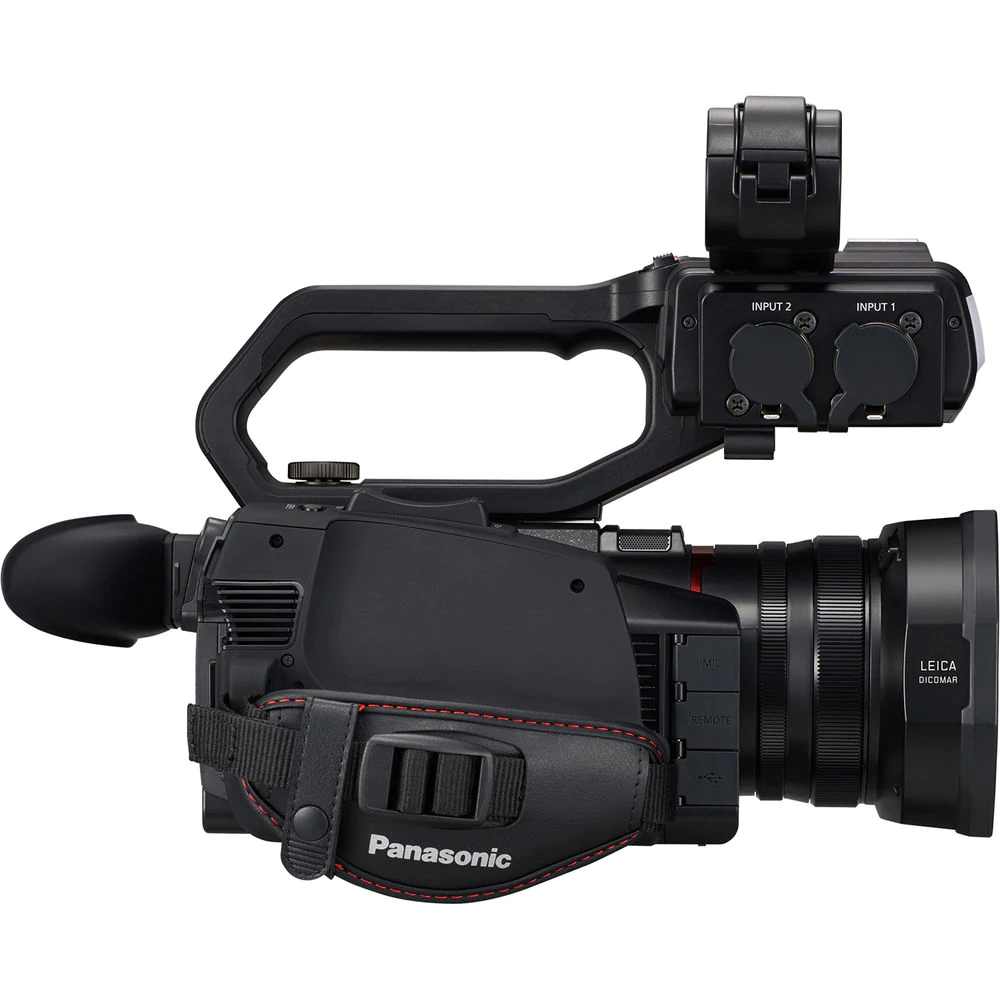

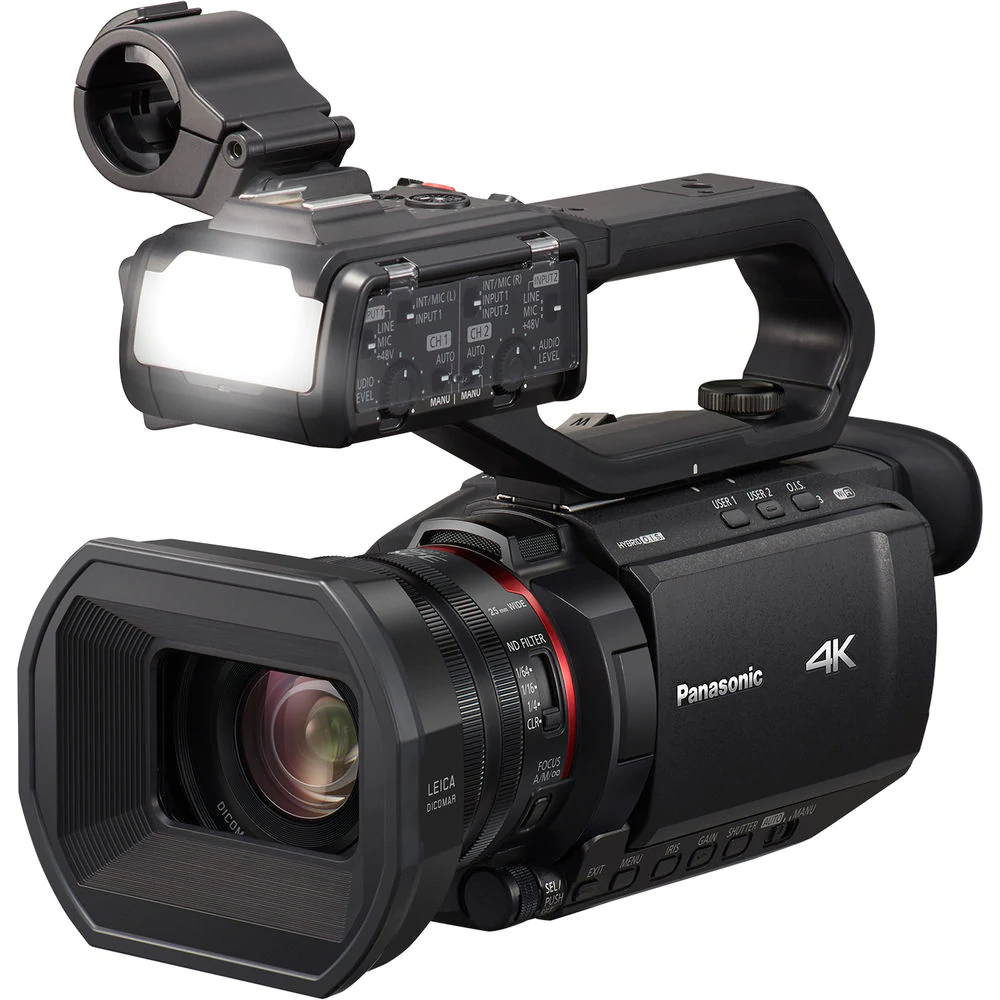

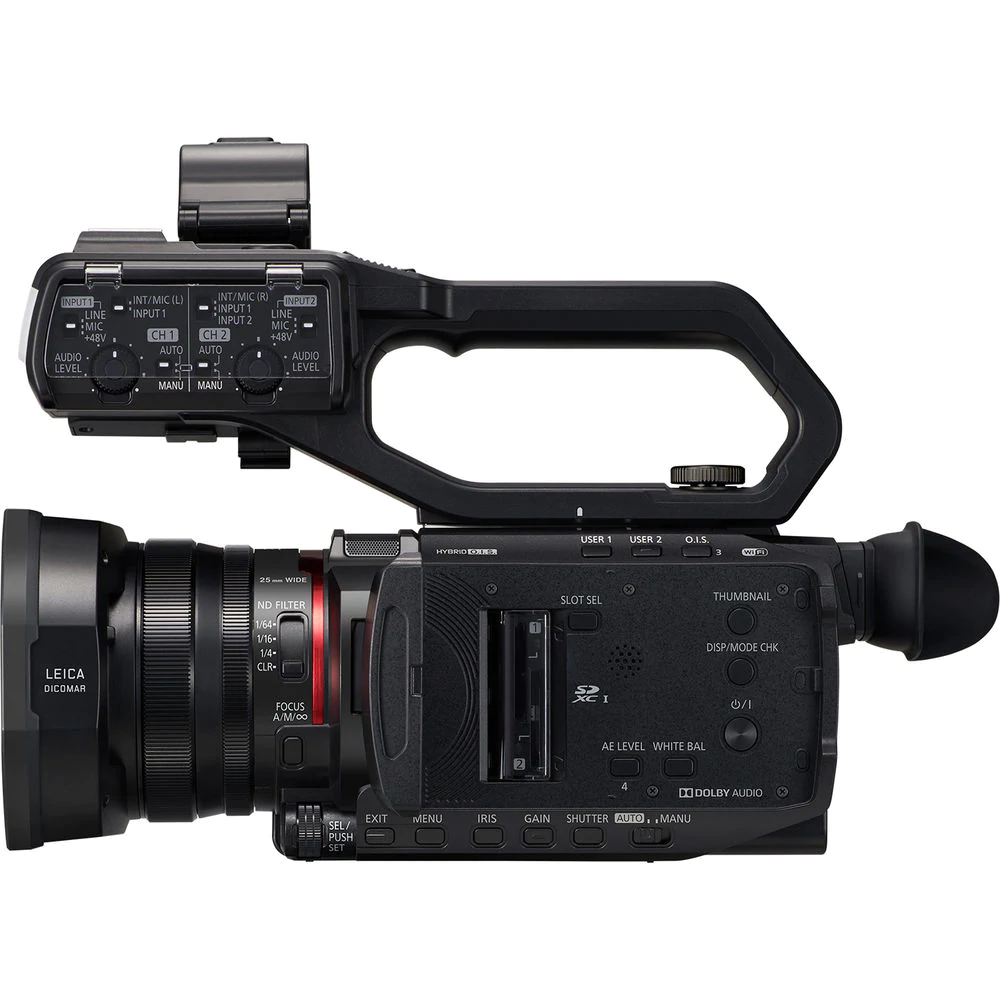

The AG-CX10 features two manual lens control rings, one for focus and the second switchable between zoom and iris. The two rings are different sizes, allowing you to identify each ring by feel so you don’t have to look away from the shot to confirm you are using the correct ring. An integrated ND wheel enables rapidly, switching between clear, 2-stop, 4-stop, and 6-stop NDs. The removable top handle incorporates two 3-pin XLR audio inputs and a built-in LED video light.
The top handle supports +48V phantom power/mic/line selectable XLR audio input with manual volume control for each of the two channels. Also supported is a 24-bit linear PCM system (MOV/P2 MXF), 16-bit AAC (MP4), or Dolby Audio system (AVCHD) high-quality 2-channel audio recording.
FHD mode enables slow-motion recording at up to 120 fps (for 59.94 Hz)/100 fps (for 50 Hz). And 10-bit recording is supported, for full-frame images with no crop and autofocus active.
For both UHD and FHD modes, in addition to Optical Image Stabilization (O.I.S.), the camera also features Electronic Image Stabilization which operates to detect and correct handshake in five axes, including rotational blurring. The Ball O.I.S. System reduces friction on the drive section, achieving delicate correction even for small-amplitude handshake at all focal lengths.
Face Detection AF/AE provides precise focusing while compensating the exposure for subjects, and together with the camera’s precise focus lens drive achieves rapid focusing speed, stability, and tracking performance in both 4K and Full HD. In addition, subject tracking with color recognition can be activated on the LCD panel.
