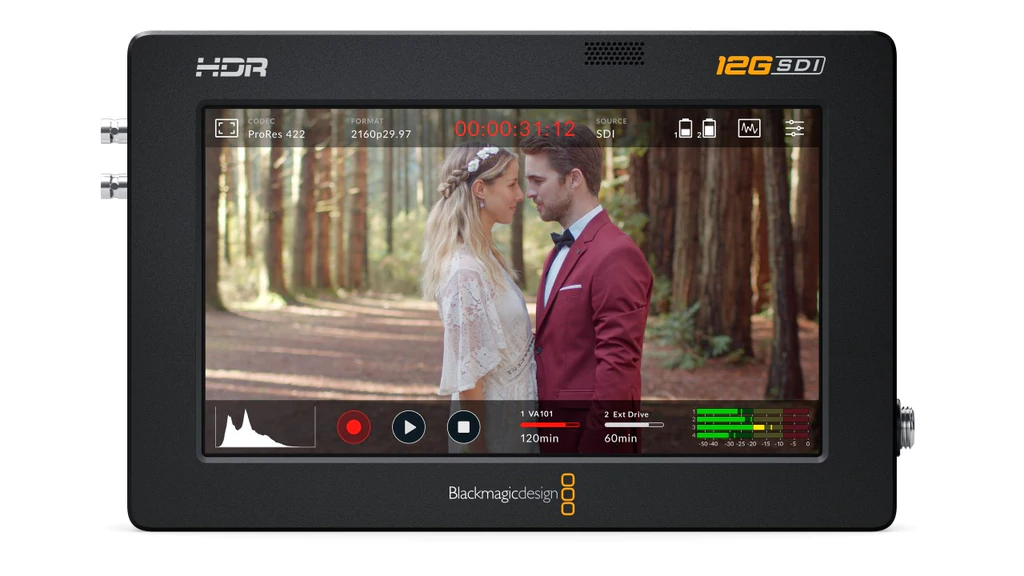

Blackmagic Video Assist 5” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 5 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. The built in SD card recorder save files in broadcast quality 10‑bit 4:2:2 ProRes or DNx formats. The files are all standard, so you can start editing immediately without having to convert them!

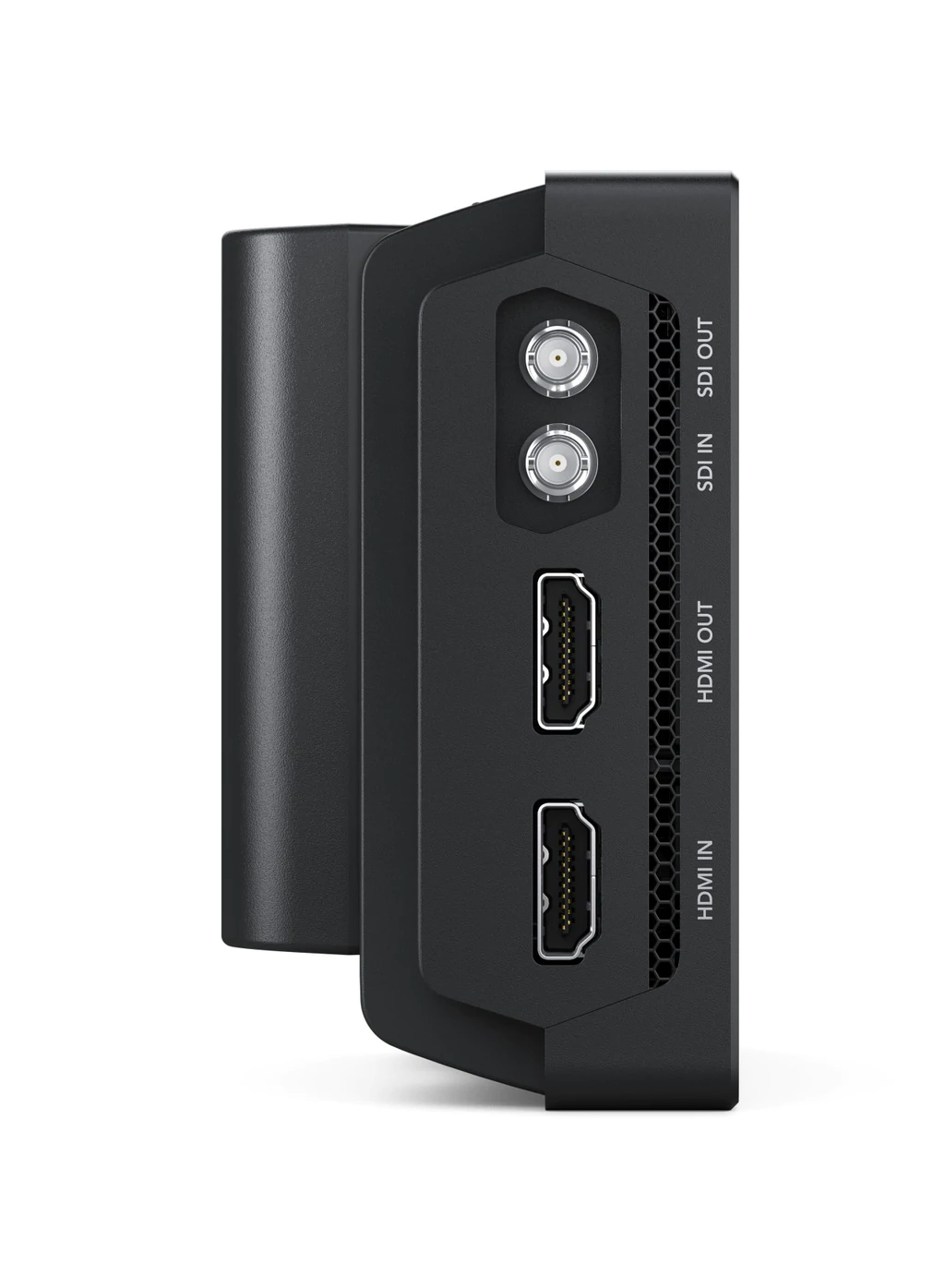

SDI VIDEO INPUTS
1 x Micro BNC
SDI VIDEO OUTPUTS
1 x Micro BNC
SDI RATES
270Mb, 1.5G, 3G, 6G, 12G.
HDMI 2.0A VIDEO INPUTS
1
HDMI 2.0A VIDEO OUTPUTS
1
ANALOG AUDIO INPUTS
None, embedded audio only.
ANALOG AUDIO OUTPUTS
1 x 3.5 mm headphone jack.
BUILT IN SPEAKER
Mono
SCREEN DIMENSIONS
5 inch 1920 x 1080.
SCREEN BRIGHTNESS
2500nits
SCREEN COLOR
P3 wide color gamut
SDI AUDIO INPUTS
16 channels embedded via 12G-SDI
SDI AUDIO OUTPUTS
16 channels embedded via 12G-SDI
HDMI AUDIO INPUTS
8 channels embedded via HDMI 2.0a
HDMI AUDIO OUTPUTS
8 channels embedded via HDMI 2.0a
REMOTE CONTROL
None

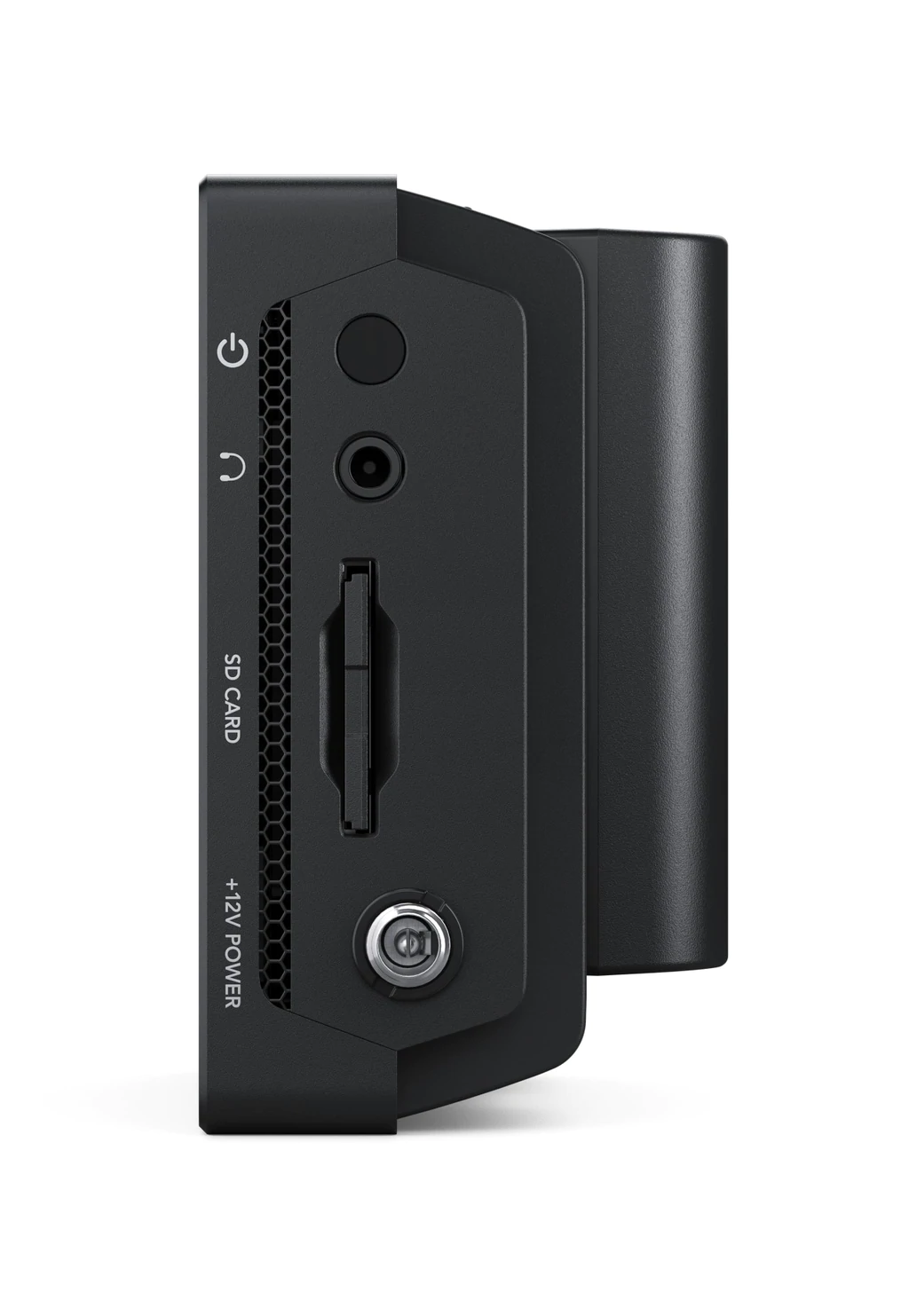

SD INTERFACE
1 x UHS-II SD slot.
STORAGE TYPE
Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
COMPUTER INTERFACE
1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control.
SD VIDEO STANDARDS
525i59.94 NTSC, 625i50 PAL
HD VIDEO STANDARDS
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K VIDEO STANDARDS
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
ULTRA HD VIDEO STANDARDS
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K VIDEO STANDARDS
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
SDI COMPLIANCE
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
SDI METADATA SUPPORT
HD RP188
AUDIO SAMPLING
Television standard sample rate of 48 kHz and 24-bit.
VIDEO SAMPLING
4:2:2 YUV
COLOR PRECISION
10-bit
COLOR SPACE
REC 601, REC 709, REC 2020
HDR SUPPORT
HDR10, Hybrid Log Gamma
MULTIPLE RATE SUPPORT
SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s
SDI RAW
Blackmagic RAW
SD VIDEO STANDARDS
525i59.94 NTSC, 625i50 PAL
HD VIDEO STANDARDS
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
ULTRA HD VIDEO STANDARDS
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K VIDEO STANDARDS
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
HDMI COLOR PRECISION
10-bit
HDR SUPPORT
HDR10, Hybrid Log Gamma
COPY PROTECTION
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
MEDIA
1 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
MEDIA TYPE
SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1,Blackmagic RAW Constant Bitrate 8:1,Blackmagic RAW Constant Bitrate 12:1,Blackmagic RAW Constant Quality Q0,Blackmagic RAW Constant Quality Q5,
Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy,DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF.
RECORDER CONTROL
Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
EXTERNAL CONTROL
SDI and HDMI start/stop and timecode run.
SUPPORTED CAMERAS
Panasonic AU-EVA1, Canon EOS C300 Mark II
SOFTWARE INCLUDED
Blackmagic Video Assist Operating System
SCOPES
Waveform, RGB Parade, Vector, Histogram.
VIEWING MODES
Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.
