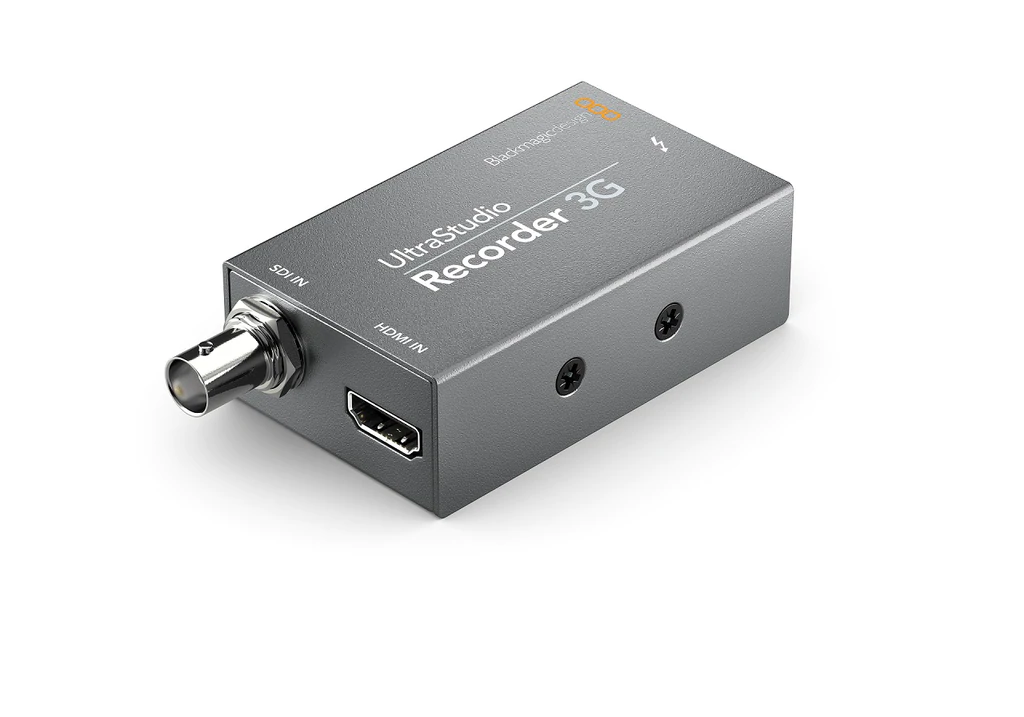

Get the world’s smallest pocket sized SDI and HDMI video capture for your Thunderbolt 3 laptop or desktop computer! UltraStudio Recorder 3G features the highest quality 10 bit uncompressed and compressed video capture that’s compatible with all popular video software including DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro CC and hundreds more!
SDI VIDEO INPUTS
1
SDI RATES
270Mb, 1.5G, 3G
SDI AUDIO INPUTS
16 Channels embedded in SD/HD
HDMI VIDEO INPUTS
1
HDMI AUDIO INPUTS
8 Channels embedded in SD/HD
COMPUTER INTERFACE
Thunderbolt™ 3 (Mac OS, Windows and Linux)
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
SOFTWARE INCLUDED
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
INTERNAL SOFTWARE UPGRADE
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
OTHER SUPPORTED APPLICATIONS INCLUDE:
Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom.
SD VIDEO STANDARDS
525i59.94 NTSC, 625i50 PAL
HD VIDEO STANDARDS
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K VIDEO STANDARDS
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI COMPLIANCE
SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
SDI METADATA SUPPORT
RP 188/SMPTE 12M-2 and closed captioning.
SDI AUDIO SAMPLING
Television standard sample rate of 48 kHz and 24-bit.
SDI VIDEO SAMPLING
4:2:2, 4:4:4
SDI COLOR PRECISION
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
SDI COLOR SPACE
REC 601, REC 709 and REC 2020
MULTIPLE RATE SUPPORT
SDI video connection is switchable between SD and HD.
SD VIDEO STANDARDS
525i59.94 NTSC, 625i50 PAL
HD VIDEO STANDARDS
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI AUDIO SAMPLING
Television standard sample rate of 48 kHz and 24 bit.
HDMI VIDEO SAMPLING
4:2:2 and 4:4:4
HDMI COLOR PRECISION
8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.
HDMI CONFIGURATION
HDMI 2.0a supports Deep Color.
HDMI COLOR SPACE
REC 601, REC 709 and REC 2020
MULTIPLE RATE SUPPORT
HDMI video connection is switchable between SD and HD.
COPY PROTECTION
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
COLORSPACE CONVERSION
Hardware based real time.
PHYSICAL INSTALLATION
Requires computer with a Thunderbolt™ 3 USB-C port. Please check support pages to see the full system requirements.
