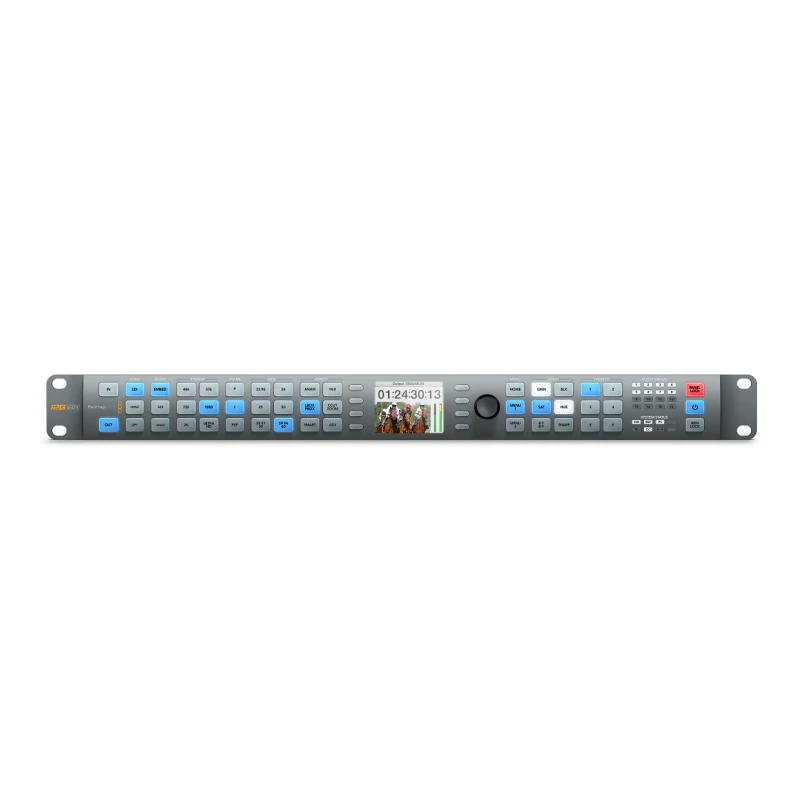

Blackmagic Design Teranex AV

Connections

SDI VIDEO INPUTS

1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD

SDI VIDEO INPUT L OOPS

1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.

SDI VIDEO OUTPUTS

1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching.

1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as dual link output for 4:2:2 3G or 6G Ultra HD.

QUAD SDI VIDEO OUTPUTS

4x BNC (Channels A, B, C, D) – 10-bit 3G-SDI Quad Link or Quad HD Split for Ultra HD p50/59.94/60; 10-bit 1.5G-SDI Quad HD Split for Ultra HD p23/24/25/29/30. For other output formats, these connectors will supply four replicated SDI outputs.

HDMI VIDEO INPUTS

1x HDMI 2.0 type A connector. YUV or RGB, auto switching.

HDMI VIDEO LOOP INPUTS

1x HDMI 2.0 type A connector. Active Input loop.

HDMI VIDEO OUTPUTS

1x HDMI 2.0 type A connector. YUV or RGB, user selectable.

SDI AUDIO INPUTS

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

SDI AUDIO OUTPUTS

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI AUDIO INPUTS

8 channels in SD, HD, 3G HD, 2K and Ultra HD.

HDMI AUDIO OUTPUTS

8 channels in SD, HD, 3G HD, 2K and Ultra HD.

OPTICAL FIBER CONNECTION (OPTIONAL)

1x SMPTE optical fiber SFP socket.

OPTICAL FIBER VIDEO INPUTS

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

OPTICAL FIBER VIDEO OUTPUTS

1x 10­bit SD, HD, 3G HD, 2K, Ultra HD auto switching.

OPTICAL FIBER AUDIO INPUTS

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

OPTICAL FIBER AUDIO OUTPUTS

16 channels in SD, HD, 3G HD, 2K and Ultra HD.

ANALOG AUDIO INPUTS

2x XLR – 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs) .
2x RCA – stereo unbalanced analog audio on RCA connectors for consumer equipment.

AES/EBU DIGITAL AUDIO INPUTS

2x XLR – 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)

DOLBY® SUPPORT BUILT IN

Dolby® AC-3 pass through in all conversions. Dolby® E pass through except during video frame rate conversions.

TIMECODE INPUTS

Support for VITC/ATC. No support for LTC.

TIMECODE OUTPUTS

Support for VITC/ATC. No support for LTC.

MULTI RATE SUPPORT

SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.

REFERENCE INPUT

1x BNC – Black Burst in SD or Tri-level sync in HD.

REFERENCE OUTPUT

1x BNC – Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.

COMPUTER INTERFACE

1 x USB type C port for software updates. 1 x RJ45 Gigabit Ethernet for remote control and configuration.

PROCESSOR INTERFACE

Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
