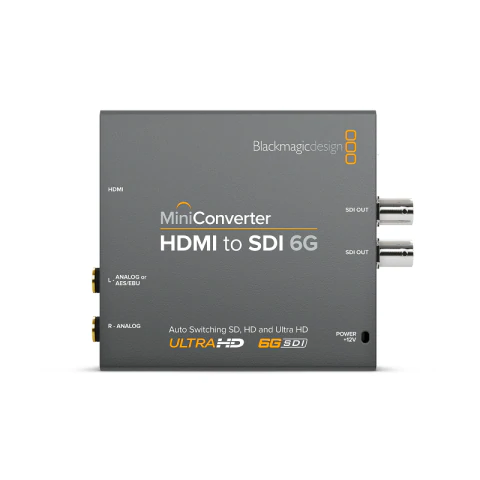

Blackmagic Design Mini Converter HDMI To SDI 6G

Description

Mini Converter HDMI to SDI 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Mini Converter HDMI to SDI is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI!

Connections

SDI VIDEO OUTPUTS

2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input.

HDMI VIDEO INPUTS

HDMI type A in

ANALOG AUDIO INPUTS

2 channels of professional balanced analog audio with standard 1/4 inch jack connections.

DIGITAL AUDIO INPUTS

4 channels of AES/EBU digital audio.

MULTI RATE SUPPORT

Auto detection of SD, HD or 6G-SDI.

UPDATES AND CONFIGURATION

USB

RECLOCKING

Yes

Standards

SD VIDEO STANDARDS

525i59.94 NTSC, 625i50 PAL

HD VIDEO STANDARDS

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

ULTRA HD VIDEO STANDARDS

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K VIDEO STANDARDS

4K DCI p24

SDI COMPLIANCE

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A or Level B, SMPTE ST-2081, ITU-R BT.656 and ITU-R BT.601.

SDI VIDEO RATES

SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.

SDI VIDEO SAMPLING

4:2:2

SDI AUDIO SAMPLING

Television standard sample rate of 48 kHz and 24 bit.

SDI COLOR PRECISION

4:2:2

SDI COLOR SPACE

YUV

SDI AUTO SWITCHING

Automatically detects SD, HD or 6G-SDI.

HDMI VIDEO STANDARDS

525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HDMI COLOR SPACE

YUV and RGB

HDMI COLOR PRECISION

4:2:2 and 4:4:4

COPY PROTECTION

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Format Conversion

HD down conversion

Software

SOFTWARE CONTROL

Mac OS X™ and Windows™ software upgrade via USB.

INTERNAL SOFTWARE UPGRADE

Via included updater application.
