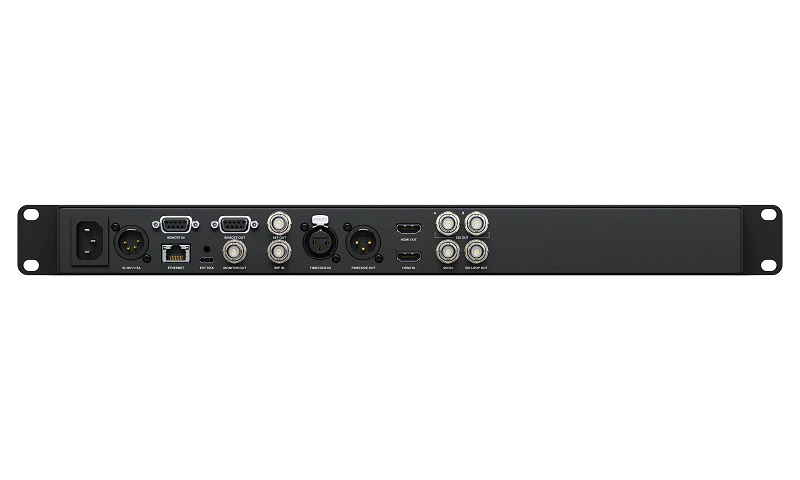

The HyperDeck Studio HD Pro includes all the features of the Plus model but at a full rack width size, there’s space for more features! The larger model has space for two SSD slots but still includes the two SD card slots of the smaller models. This means you can instantly move media cards between different models of HyperDeck Studio. You get the nice transport control buttons as well as a machined metal search dial with electronic clutch for limiting rotation when in shuttle mode. There are also dedicated buttons for jog, shuttle and scroll search dial modes. The rear panel has extra space so the timecode connections have been upgraded to XLR connectors.
SDI VIDEO INPUTS
1
SDI VIDEO OUTPUTS
2
SDI MONITOR OUTPUTS
1
SDI RATES
270Mb, 1.5G, 3G, 6G.
HDMI 2.0 VIDEO INPUTS
1
HDMI 2.0 VIDEO OUTPUTS
1
BUILT IN SPEAKER
Mono
AUDIO OUTPUT
1 x 6.35 mm headphone jack.
SCREEN
2.2 inch LCD.
TIMECODE CONNECTIONS
1 x XLR In, 1 x XLR Out.
REFERENCE CONNECTIONS
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
SDI AUDIO INPUTS
16 channels embedded audio.
SDI AUDIO OUTPUTS
16 channels embedded audio.
HDMI AUDIO INPUTS
8 channels embedded audio.
HDMI AUDIO OUTPUTS
8 channels embedded audio.
REMOTE CONTROL
1 x RS-422 In, 1 x RS-422 Out.
RECORDER CONFIGURATION
Via user interface orBlackmagic HyperDeck Ethernet Protocol.
ETHERNET
1Gb/s
COMPUTER INTERFACE
1 x USB Type-C 3.0 (up to 5Gb/s) forexternal drive recording, webcam out,software configuration and updates.
SD VIDEO STANDARDS
525i59.94 NTSC, 625i50 PAL
HD VIDEO STANDARDS
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI VIDEO STANDARDS
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
ULTRA HD VIDEO STANDARDS
2160p23.98, 2160p24, 2160p25,2160p29.97, 2160p30
4K DCI VIDEO STANDARDS
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SDI COMPLIANCE
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10,SMPTE 2084 and SMPTE 2108‑1.
SDI METADATA SUPPORT
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
SUPPORTED HDMI FORMATS
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30,
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
AUDIO SAMPLING
Television standard 24‑bit, 48 kHz sample rate.
VIDEO SAMPLING
4:2:2 YUV
COLOR PRECISION
10‑bit
COLOR SPACE
REC 601, REC 709, REC 2020.33 point 3D LUTS can be applied to SDI monitor out.
HDR SUPPORT
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
MULTI RATE SUPPORT
Auto detection of SD, HD and 6G‑SDI.
COPY PROTECTION
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
MEDIA
2 x 2.5 inch disc slots2 x SD card slots1 x USB-C 3.0 expansion portfor external recording of SD, HD,2K DCI, Ultra HD and 4K DCI.
Please click here for a summary of compatible media.
MEDIA TYPE
SATA-II or SATA-III 2.5 inch solid state media.UHS-I and UHS-II SD cards.
MEDIA FORMAT
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems.
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p30. Playback only of ProRes 4444 QuickTime up to 1080p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 30fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
BUILT IN CONTROL PANEL
16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
EXTERNAL CONTROL
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
SOFTWARE INCLUDED
Blackmagic OSBlackmagic HyperDeck SetupInternal Software UpgradeLoaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
LED bezel indicator lights around SSD media slots and LED indicator lights above the SD media slots.
POWER SUPPLY
1 x Internal 100 – 240V AC 50/60Hz.
1 x 4 pin XLR 12V DC In for external power supplyor battery use.
POWER USAGE
100 W max.
OPTIONAL ACCESSORIES
HyperDeck Extreme Control
1 rack unit height.
OPERATING TEMPERATURE
0° to 40° C (32°to 104° F)
STORAGE TEMPERATURE
-20° to 60° C (-4° to 140° F)
RELATIVE HUMIDITY
0% to 90% non‑condensing
HyperDeck Studio HD Pro
12 Month Limited Manufacturer’s Warranty.
