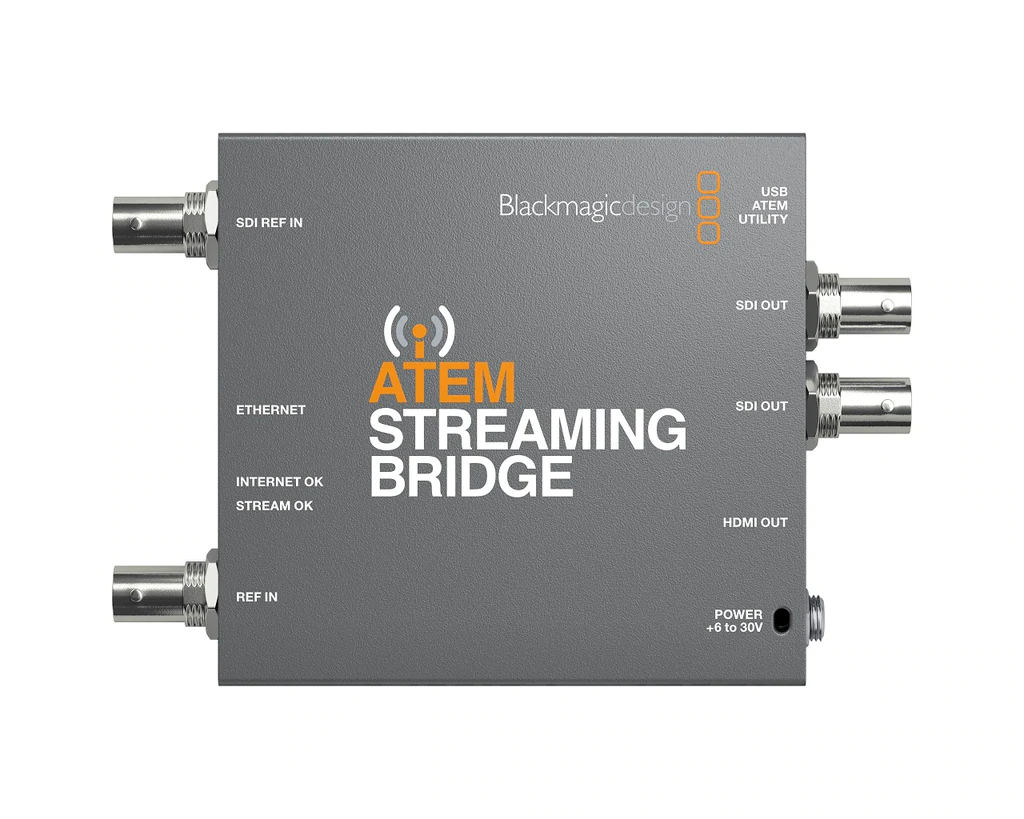

The ATEM Streaming Bridge is a video converter that lets you receive a H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations around your local Ethernet network, or via the internet globally! That’s possible because it uses advanced H.264 codecs for higher quality at very low data rates. Imagine broadcasters and bloggers collaborating on shows and creating global networks of ATEM Mini Pro remote broadcast studios. Setup is easy as the ATEM software utility can create setup files that you can email to remote ATEM Mini Pro studios. ATEM Streaming Bridge is the perfect way to use ATEM Mini Pro as a remote broadcast studio!
SDI REFERENCE INPUTS
1 x 3G-SDI
SDI VIDEO OUTPUTS
2 x 3G-SDI
SDI AUDIO OUTPUTS
2 Channels embedded in HD-SDI.
HDMI VIDEO OUTPUT
HDMI type A out.
HDMI AUDIO OUTPUTS
2 Channels embedded in HDMI.
SDI RATES
1.5G, 3G.
REFERENCE INPUT
Black burst and Tri‑Sync.
ETHERNET
Ethernet supports 10/100/1000 BaseT.
UPDATES AND CONFIGURATION
1 x USB Type-C for software configuration and software updates.
SDI VIDEO STANDARDS
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
HDMI VIDEO STANDARDS
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI COMPLIANCE
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.
SDI VIDEO SAMPLING
4:2:2
SDI AUDIO SAMPLING
Television standard sample rate of 48 kHz and 24 bit.
SDI COLOR PRECISION
10-bit
SDI COLOR SPACE
YUV
STREAMING INPUT
ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini Pro and ATEM Mini Pro ISO.
Internal software upgrade via updater application.
Mini Switches or setup utility software when connected by USB.
POWER SUPPLY
+12V universal power supply included with international socket adapters for all countries.
POWER CONSUMPTION
6W max.
OPERATIONAL VOLTAGE RANGE
6 – 30V DC.
